Stainless Steel Brewer Grains Wedge Wire Support Grid / Catalyst Support Grid

1. Lehler Support Grid

Flat, framed and unframed support grid can be manufactured with rectangular or round support rods.

Support Grid magnify vibration with drum-tight tension and withstand violent vibrating action.

2.Features and benefits:

Large open slots increase screening efficiency and promote precise sizing.

The design enhances efficiency by substantially reducing blinding and pegging.

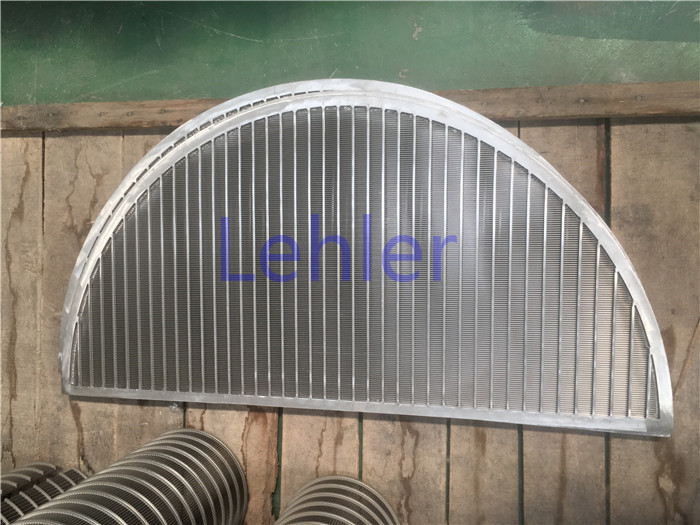

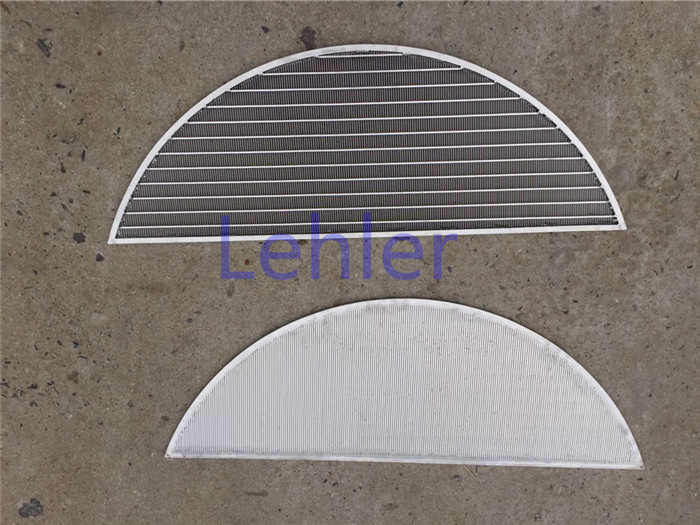

3.Details pictures of Lehler Sieve Bend Screen

4. Application of Lehler Support Grid?

• Aggregate

• Dewatering

• Chemical application include fertilizer

• Mining Application include coal, potash, taconite, sand and gravel

• Food application include potatoes, vegetables, sugar, cornstarch and cereal.

• For application where sizing accuracy is critical. Ideal for reducing blinding and pegging

5. Advantages of Support Grid?

1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.
2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.
3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.
4. High-precision slot opening: Minimum Slot opening is 20 microns.

Qingdao Lehler Filtering Technology Co., Ltd is a leading manufacturer of the high-quality wedge wire screens, Johnson wire screens, screen baskets, bend sieves, flat panel screens, resin trap, filter nozzles and self-cleaning filters.

Lehler service many industries including Water Treatment, Food, Pulp & Paper, Pharmaceutical, Ink, Paint and Coatings, Petroleum, Powder Metals and Cosmetics...

At Lehler, we treat quality as a pledge and work towards achieving it in all ways possible. In order to maintain the quality, stability and performance of the products, our quality expert undergoes stringent quality checks at various levels of production. Quality has always been our most priority. Our products have passed the ISO 9001:2015 certification.

Lehler offers a wide range of all stainless steel filtration systems used for many filtration and separation processes. Lehler is able to produce wedge wire tube with minimum slot opening 0.02mm（20micron）, diameter from 16mm to 1500mm, maximum length 4000mm.

Relying on advanced technology equipment, professional R&D team, high level of production capacity, we provide our customer with the highest cost-effective products and solutions.

Our Product and service network covering the whole domestic market, and exported to Europe and the United States, Japan, South Korea, South America, Southeast Asia and Taiwan and other countries and regions. We strive to become the leader in the filter industry!
